Space Capsule

Space Capsule have good durable and water-resistant design. This Space Capsule is designed with a waterproof system that covers the entire house, ensuring that your space remains dry and secure in any weather condition. The steel structure and sandwich panel material provide excellent durability and resistance to natural disasters.

Send Inquiry

Product Description

1.the space capsule comes with an integrated biochemical system and photovoltaic system, to achieve the standard of energy saving and emission reduction, to solve the problem of sewage treatment;

2. the space capsule internal supporting intelligent home, from unlocking the door, to a small light bulb are used intelligent ultra control, very convenient;

3. the space capsule is mobile, does not damage the environment, not subject to geographical restrictions;

4. the appearance of the space capsule is very unique, very personalized, very attractive full of sense of technology;

5. the capsule is molded with fiberglass of food-grade resin and glass fiber, high strength cold and heat resistance, long service life.

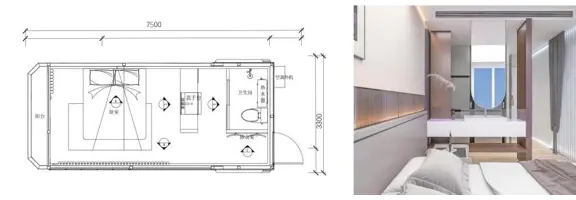

D2 Space Capsule layout and picture

Space Capsule

D2 Space Capsule Configuration

Product configuration table
Product model	D-02
Product model number
Dimensions:7500mm33003300mm	Covers an area of 24.8m²	About 3.5 tons total weight
Electric power 12 kw	Occupancy 2 persons
Main frame structure system
Steel structure	Galvanized square pipe frame
Maintenance structure system
Outer aluminum plate:aviation aluminum plate 2.5mm fluorocarbon baking paint	Insulating layer:polyurethane insulation thickness 70mm
Door and window engineering system
Entrance door	Entrance door(with smart lock)
Balcony door and window	Broken bridge aluminum 5+12A+5
Bathroom door	Glass sliding door
Curtain wall glass	5+12A+5, lom-e glass
Interior wal1 system
Living room bedroom wall
Base board:joinery board and 0SB	Surface board:bamboo and wood fiber board
Bathroom wall
Waterproof substrate 18mm	Surface board:bamboo and wood fiber board
Floor structure system
Cement pressure plate	18mm
Bedroom laminated wood floor	12mm
Tile surface	400*400 including seam
Balcony plastic flooring	23mm
Ceiling system
Base board:joinery board	Surface board:bamboo and wood fiber board
Electrical equipment installation system
Strong power distribution box	Includes control circuit breakers, protectors, ete
Switch socket	Including five-hole socket, three-bole socket, waterprof socket
Weak current distribution box	Router included
Weak current socket	Limited line network socket
Card access system
Water supply and drainage engineering system
Water supply pipe ppr	Drain pipe PVC	The whole house water supply and drainage insulation protection system : Electric tracing zone
Lighting system
Indoor lighting:simple lampstrip light	0utdoor lighting:domnlightstrip light	Transformer 800,400,200 optional
Bathroom hardware
toilet	Wash basin	tap
Showerhead	Multifunctional bath bomb	Smart mirrors
Aluminum alloy shelves
Custom cabinetry
Custom multi-function cabinet
Equipment section
air conditioning	water heater
Optional sections
Intelligent speech system	Fresh air system	Custom kitchens
Audio	Geothermal and control	Wood veneer finishing
