20ft Capsule House
20ft Capsule House is good privacy and security, each spacecraft is an independent living unit, providing visitors with a high degree of privacy and personalized space. The structural design of spacecraft usually considers safety factors such as fire prevention, theft prevention, earthquake resistance, etc., to ensure the safety of tourists during their accommodation.
Send Inquiry
Product Description
This 20ft Capsule House is a modern, compact living solution. It's space - efficient, multifunctional, and made of quality materials, suitable for various uses. The capsule room produced by our factory is a customizable product.
We use environmentally friendly materials, focus on sustainable development, and are committed to creating a healthy and environmentally friendly living environment for our customers.

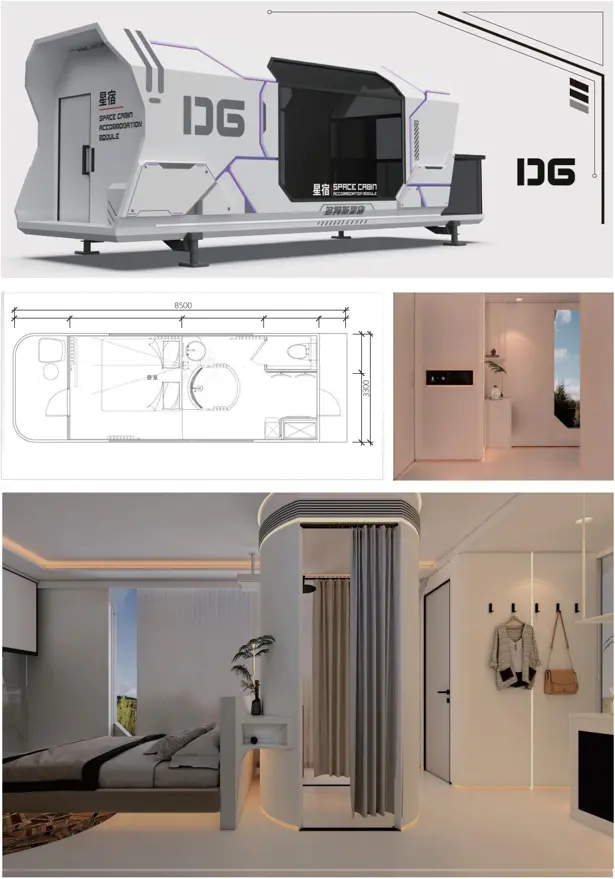

D6 Space Capsule layout and picture
D6 Space Capsule Configuration
| Product configuration table | ||
| Product model | D-06 | |
| Product model number | ||
| Dimensions:8500mm*3300*3300mm | Covers an area of 28m2 | About 7.5 tons total weight |
| Electric power 12 kw | Occupancy 2 persons | |
| Main frame structure system | ||
| Steel structure | Galvanized square pipe frame | |
| Maintenance structure system | ||
| Outer aluminum plate:aviation aluminum plate 2.5mm fluorocarbon baking paint | Insulating layer:polyurethane insulation thickness 70mm | |
| Door and window engineering system | ||
| Entrance door | Entrance door(with smart lock) | |
| Balcony door and window | Broken bridge aluminum 5+12A+5 | |
| Bathroom door | Glass sliding door | |
| Curtain wall glass | 5+12A+5, lom-e glass | |
| Interior wal1 system | ||
| Living room bedroom wall | ||
| Base board:joinery board and 0SB | Surface board:bamboo and wood fiber board | |
| Bathroom wall | ||
| Waterproof substrate 18mm | Surface board:bamboo and wood fiber board | |
| Floor structure system | ||
| Cement pressure plate | 18mm | |
| Bedroom laminated wood floor | 12mm | |
| Tile surface | 400*400 including seam | |
| Balcony plastic flooring | 23mm | |
| Ceiling system | ||
| Base board:joinery board | Surface board:bamboo and wood fiber board | |
| Electrical equipment installation system | ||
| Strong power distribution box | Includes control circuit breakers, protectors, ete | |
| Switch socket | Including five-hole socket, three-bole socket, waterprof socket | |
| Weak current distribution box | Router included | |
| Weak current socket | Limited line network socket | |
| Card access system | ||
| Water supply and drainage engineering system | ||
| Water supply pipe ppr | Drain pipe PVE | The whole house water supply and drainage insulation protection system : Electric tracing zone |
| Lighting system | ||
| Indoor lighting:simple lampstrip light | 0utdoor lighting:domnlightstrip light | Transformer 800,400,200 optional |
| Bathroom hardware | ||
| toilet | Wash basin | tap |
| Showerhead | Multifunctional bath bomb | Smart mirrors |
| Aluminum alloy shelves | ||
| Custom cabinetry | ||
| Custom multi-function cabinet | ||
| Equipment section | ||
| air conditioning | water heater | |
| Optional sections | ||
| Intelligent speech system | Fresh air system | Custom kitchens |
| Audio | Geothermal and control | Wood veneer finishing |
