Z Type Folding Container House
Z Type Folding Container House is the most popular type of container house specially used for export. Z Type Folding Container House, compared with traditional container house, the installation speed is 90% faster, just need approx. 30 mins. The electrical houses circuits, doors and windows are all assembled in advance, and only the screws need to be installed when they arrive-type Foldable Container Houses.
Send Inquiry
Product Description
Z-type Foldable Container Houses are also called mobile folding containers, because they are movable and can be disassembled and reassembled. There are various devices inside that can be folded up and are so convenient to use that more and more people are using them now. people started paying attention-type Foldable Container House
Product Specification
| Product specifications | Height after folding | H=440mm |
| Loading capacity | 1*40HQ=10 units | |
| Length*Width*Height（mm） | 5900mm*2500mm*2470mm Inner size: 5650*width 2320*height 2200mm | |
| Roof Form | Flat Roof | |
| Number Of Layers | ≤3 layers | |
| Structure | Column | Specifications=50mm*160mm, Roller beam, Material Thickness=2.3mm, Material=Q235B |
| Roof Main Beam | Specifications=50*160mm, Roller beam, Material Thickness=2.3mm, Material=Q235B | |
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type, Material Thickness=1.0mm, 6 Pices, Material=Q235B | |
| Ground Main Beam | Height=50*140mm, Roller beam, Material Thickness=2.3mm, Material=Q235B | |
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type, Material Thickness=1.5mm, 9 Pices, Material=Q235B | |
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel, Thickness=50mm, Color=White-Gray, Falls freely into the water |
| Floor | Substrate | 18mm Fireproof Glass Magnesium Board |
| Panel | Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich Panel, Class B Fire Protection |
| Color steel Plate | Panel Coler Streel Plate Thickness=0.4mm | |
| Door | Specification | Width*Height=840mm*1900mm |
| Material | Steel Door, Concealed Buckle Lock | |
| Window | Specification | 950mm*1100mm |
| Fram Material | Plastic Steel | |
| Glass | Single Layer Glass |
Product Advantage
1.Fast Installation + Reduced Labor: 2~4 Workers + 15-20mins can finish the job.
2.Stronger: Compared to traditional folding boxes, the side support beams cannot be bent or folded.
3.Integrated wall panel, more secure.
4.Prefabricated Wire Routes (Customizable)
5.Customized Content: Material, Size, Color, Doors and Windows, etc.
Product Application
This Z Type Folding Container House can be used for apartment, family house, villa house, storage, hotel, school, student or labor dormitory, camping, refugee house, hospital and etc.

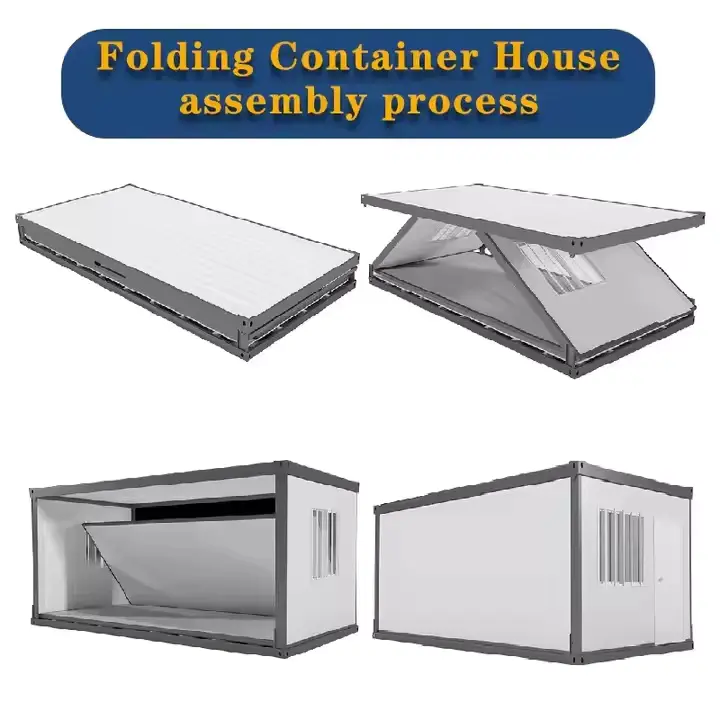

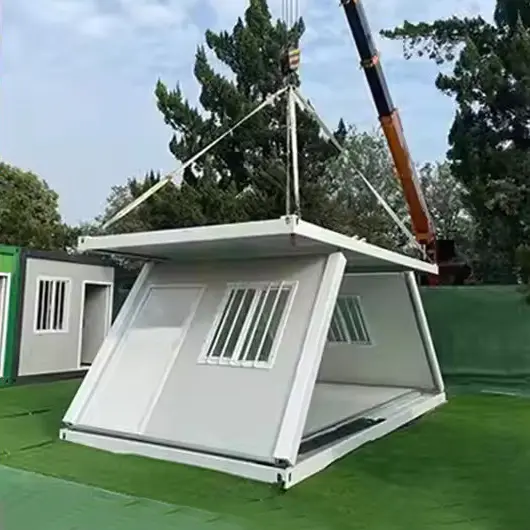

Frame diagram and Installation
FAQ
Q1: Are you a manufacturer ？
Yes, we are a professional manufacturer with 20 years’ experience in prefab house industry, we engaged in research, production and
sales of Packing box, Folding container house, Container house, Container homes, Container scenario, Expendable house, Prefab
toilet, Prefabricated Buildings, light steel structure workshop, food truck etc. for our customers. we have our strong technical
team and full range of processing production lines.
Q2: Can you produce as customized?
Yes, we can produce products based on customers‘ requirement .
Q3: What is your minimum order quantity?
Usually the MOQ is 6 sets, and it is negotiable with customers.
Q4: How soon can the products be delivered?
Normally，we can ship the products within 7-15 days after confirmed the order.
Q5: What is the application of your products?
Our products can be used for Prefabricated Buildings, living quarters, offices, Camping, Showrooms, Hotels, Villas, hospitals,
Schools, Shops etc.
