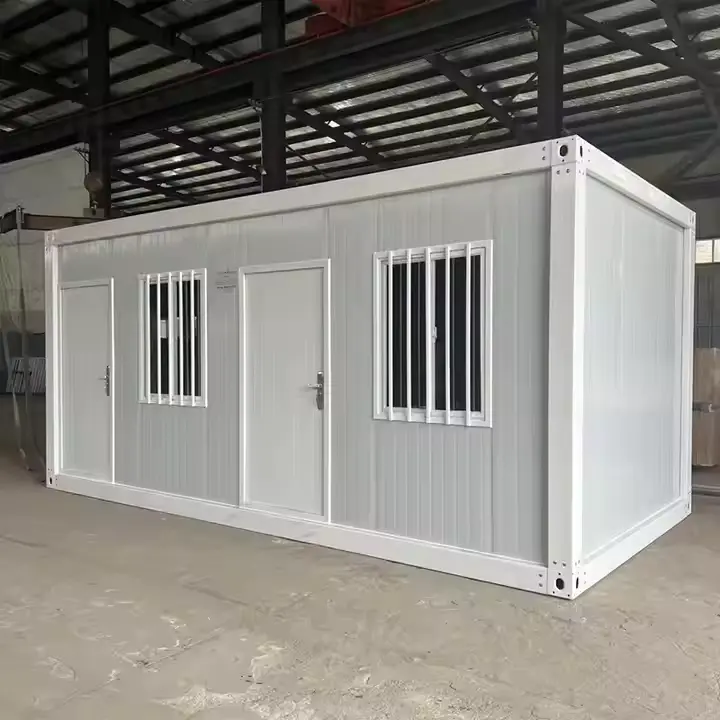

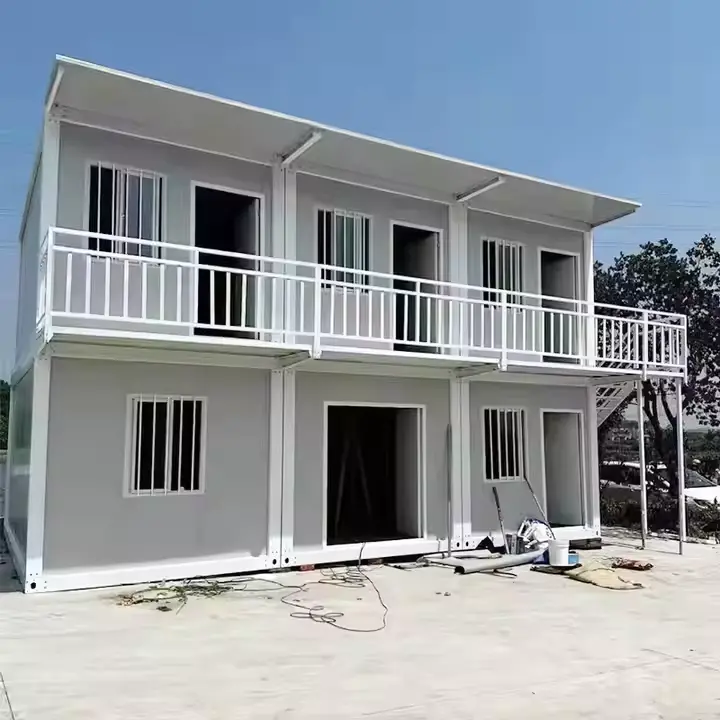

As the core product line of the Ante House factory, our 40ft Prefab Shipping Container House provides space solutions that can be quickly implemented for different application scenarios (such as mobile office, emergency resettlement, cultural tourism homestay, etc.) through a standardized production system. To meet customer customization needs, we support personalized design of interior and exterior wall color matching, space layout and functional division (bathroom/kitchen/equipment room, etc.). The main structure uses a high-strength weathering steel frame, which is energy-saving and environmentally friendly while meeting international container building standards.
At the engineering implementation level, we pioneered the use of prefabrication technology, and the assembly work can be carried out on site only after the foundation is leveled. Actual measured data shows that a 4-person construction team can complete the installation of a single box within 60 minutes with the help of special lifting equipment, saving a lot of labor costs. Each set of products is equipped with a 3D visual installation guide and supports remote technical guidance.
Product Specification
Outside Size | Unit size is Length 5810mm * Width 2330mm * Height 2540mm, the layout can be customized. | |
Inside Size | Length 5650mm * Width 2170mm * Height 2160mm | |
Packing Size | Length 5810mm * Width 2350mm * Height 73mm | |
Part name | Part | Specification |
Main Frame | Top and Bottom Frame | thickness: 3.0mm cold galvanized steel plate |
Column | Size: 210mm*150mm, thickness: 3.0mm, including 4 pcs downspouts | |
connect parts 8.0mm thickness | ||
Door | Steel door | size: 950mm*1970mm, also can be customized |
Window | PVC Glass Window | size: 1150mm*1150mm, 5+9+5 double layer glass, also can be customized |
Wall | Sandwich Panel Wall | 50mm, 75mm and 100mm thickness glass wool panel wall for choose |
Floor | Cement board | 18mm thickness cement board |
Leather | 2.0mm thickness leather, Floor tile and Wood floor also can be chosen | |
Color | Wall color and frame color | painting white, also can be other color according your requirement |
Remarks: | ||
1.20GP can loading 6 units; 40HQ can loading 12 units | ||
2.Main frame steel thickness includes, 2.2mm, 2.5mm, 3.0mm and4.0mm, any other customized requirement, pls feel free to let us know. |
After-sales warranty service
As a physical manufacturing factory, we are not an intermediary trader and have rich qualifications. We provide customers with one-stop services from scheme design, in-depth drawing to transportation and installation, ensuring the dual guarantee of product quality and delivery efficiency. The specially launched "Zhenxiang Service System" includes: one-year warranty and lifetime service. If any component fails, we will provide customers with spare parts free of charge within 1 year; if it exceeds one year, repair services will be provided at cost price.
