              20ft Folding Container House
              • 20ft Folding Container House20ft Folding Container House
              • 20ft Folding Container House20ft Folding Container House
              • 20ft Folding Container House20ft Folding Container House

              20ft Folding Container House

              20ft Folding Container House is designed with environmental protection in mind, utilizing low-cost and recyclable materials to minimize waste and reduce carbon footprint, appealing to eco-conscious customers like you, the size also can be 40ft, you can tailor the product to suit your preferences and needs, whether it's for a hotel, villa, or home.

              Send Inquiry

              Product Description

              This 20ft Folding Container House is sturdy and durable, all made of steel, with strong shock resistance and deformation resistance.

              Long-Lasting Warranty and Support: Ante house offers a warranty of more than 2 years and online technical support, providing customers with peace of mind and assistance whenever they need it, as requested by the user.


              Product Specification

              Product specifications Height after folding H=440mm
              Loading capacity 1*40HQ=10 units
              Length*Width*Height(mm) 5900mm*2500mm*2470mm Inner size: 5650*width 2320*height 2200mm
              Roof Form Flat Roof
              Number Of Layers ≤3 layers
              Structure Column Specifications=50mm*160mm, Roller beam, Material Thickness=2.3mm, Material=Q235B
              Roof Main Beam Specifications=50*160mm, Roller beam, Material Thickness=2.3mm, Material=Q235B
              Roof Secondary Beam Galvanized Cold Rolled Section Steel C Type, Material Thickness=1.0mm, 6 Pices, Material=Q235B
              Ground Main Beam Height=50*140mm, Roller beam, Material Thickness=2.3mm, Material=Q235B
              Ground Secondary Beam Galvanized Cold Rolled Section Steel C Type, Material Thickness=1.5mm, 9 Pices, Material=Q235B
              Bolt 8.8 Class High-Strength Bolts, 6
              Paint Electrostatic spraying plastic powder baking varnish ≥80μm
              Roof Roof Panel EPS Color Steel Sandwich Panel, Thickness=50mm, Color=White-Gray, Falls freely into the water
              Floor Substrate 18mm Fireproof Glass Magnesium Board
              Panel Insulation Cotton 50mm Thickness Color Steel EPS Sandwich Panel, Class B Fire Protection
              Color steel Plate Panel Coler Streel Plate Thickness=0.4mm
              Door Specification Width*Height=840mm*1900mm
              Material Steel Door, Concealed Buckle Lock
              Window Specification 950mm*1100mm
              Fram Material Plastic Steel
              Glass Single Layer Glass


              Product Advantage

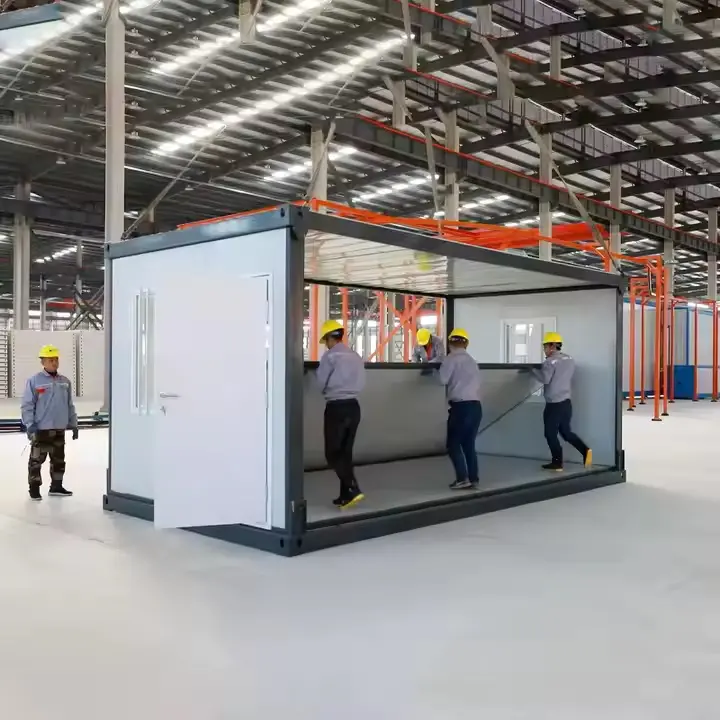

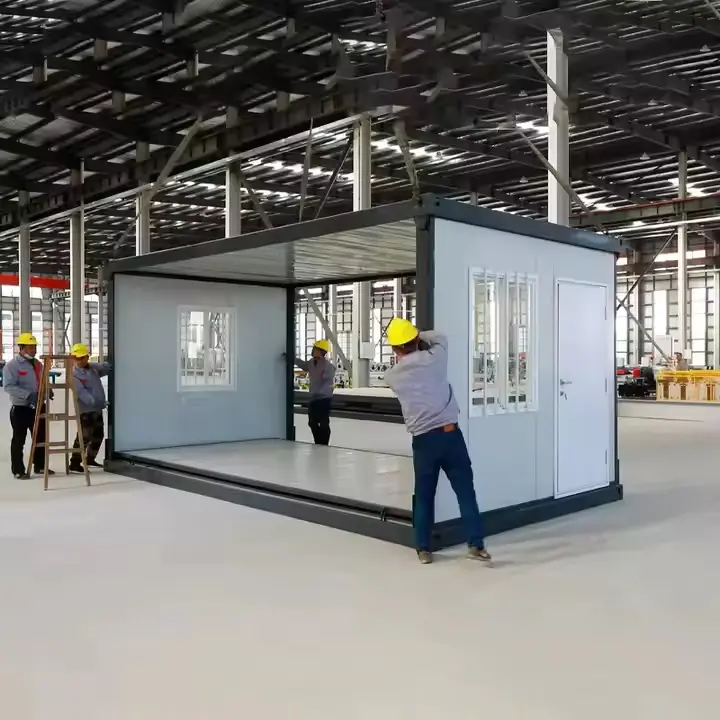

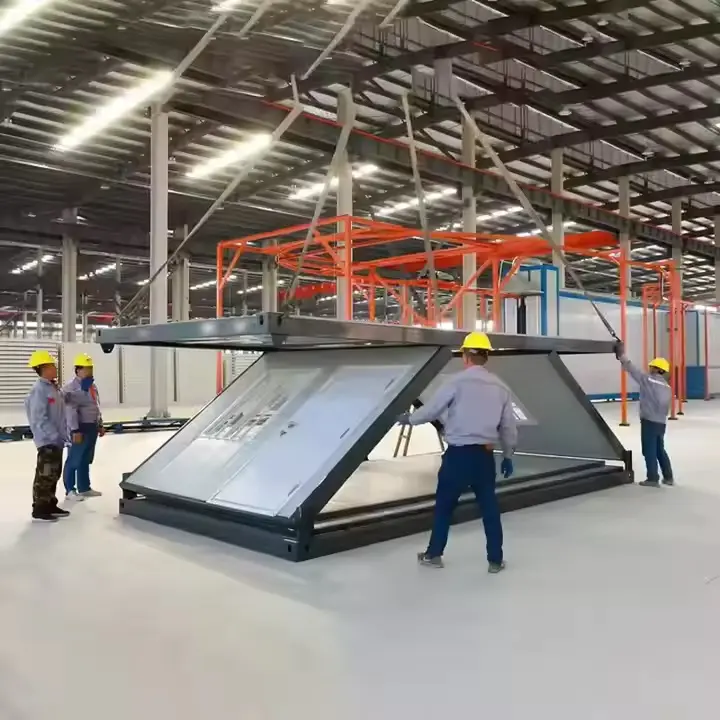

              1.Fast Installation + Reduced Labor: 2~4 Workers + 15-20mins can finish the job.

              2.Stronger: Compared to traditional folding boxes, the side support beams cannot be bent or folded.

              3.Integrated wall panel, more secure.

              4.Prefabricated Wire Routes (Customizable)

              5.Customized Content: Material, Size, Color, Doors and Windows, etc.


              Product Application

              The 20ft Folding Container House can be used for various purposes, including residential, commercial, and hospitality applications, making it an ideal solution for different users like you.

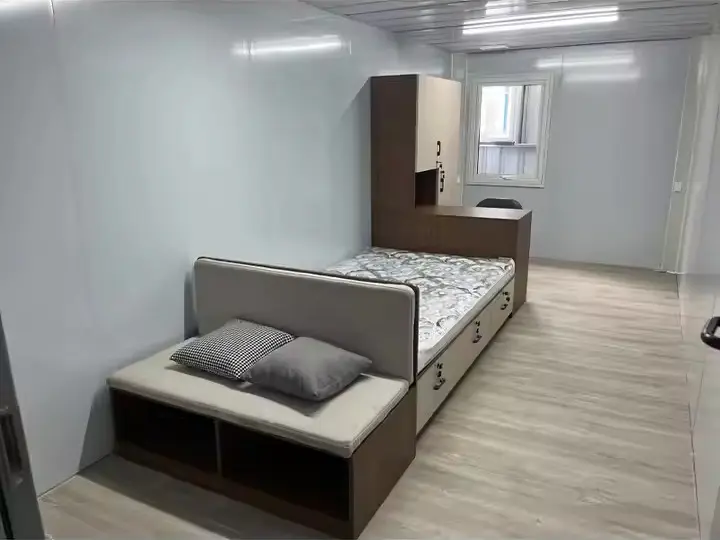

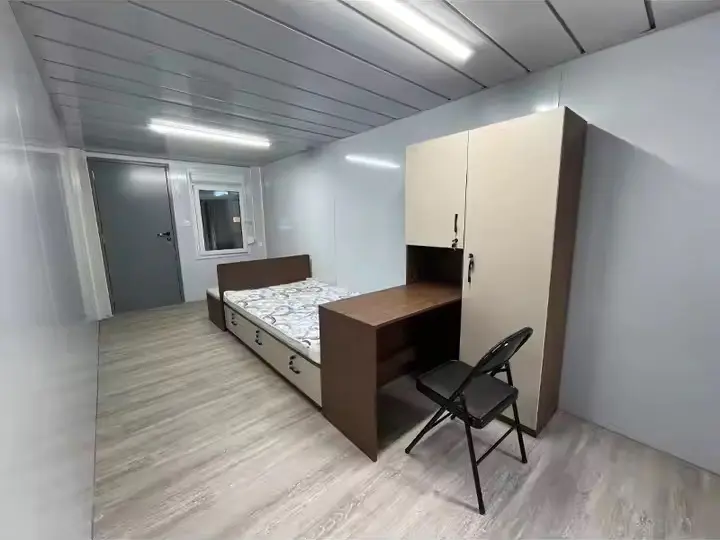

              The inside of 20ft Folding Container House

              20ft Folding Container House20ft Folding Container House


              FAQ

              1. Do you provide on-site installation service?

              We provide very detailed installation instruction drawings and videos for every project.

              For large projects, we will have both installation workers and supervisors on site. The fee for the on-site service should be

              negotiated with clients.


              2.What's your delivery time?

              Normally, delivery time is 7-10 days after deposit received. For large order, the delivery time should be negotiated.


              3.How to control the quality of your product?

              1. quality of the design: think about possible problems in advance and provide a high-quality design solution.

              2. quality of the raw material: choose the qualified raw material

              3. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.


              4. How to deal with quality problems?

              Warranty is 2 years. Within the warranty period, CGCH will responsible for all quality problems caused by our production.


              5. If there is a clear service life of your products? If have, how long?

              Under conventional climate and environment, the service life of container house steel frame is 20 years


              6. What designs do you have in different climates (How can the products adopt to different climates)?

              Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure. High corrosion region: use corrosion resistant material, or paint anti-corrosive coating.
